These stand-alone ROV powered Universal Subsea Displays (USD) can be interfaced to a Jupiter Subsea Control System or datalink and are compatible with all common torque tools.

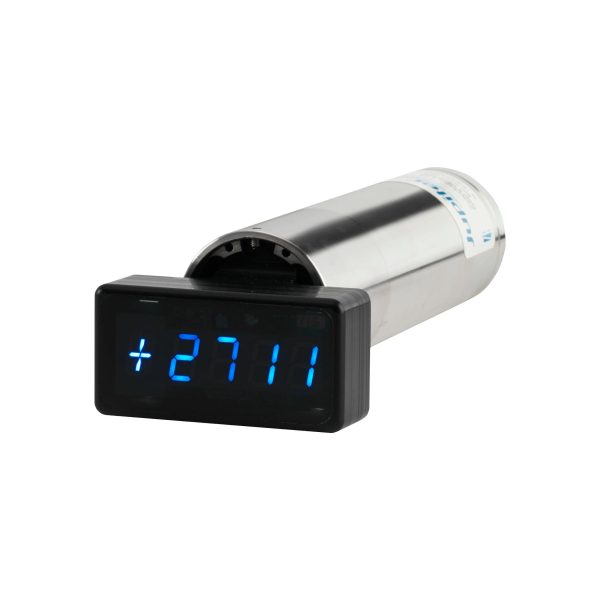

The 4 Digit USD is a user configurable unit which can be set to act either as a counter or an analogue display on subsea tools, modules and installations without the need for a complex control system or datalink.

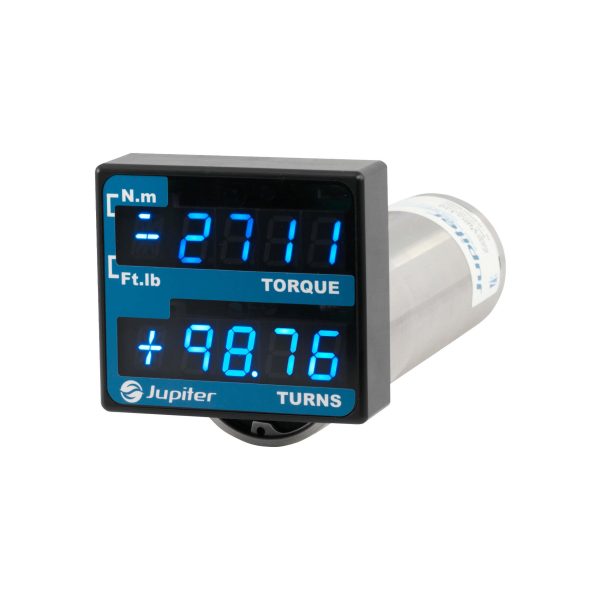

The 2×4 Digit USD is a user configurable unit which acts as a counter and an analogue display on subsea tools, modules and installations without the need for a complex control system or datalink.

The USD allows critical measurement of process values such as turns, torque, pressure or extension to be monitored at a relatively low cost and can be set to display accurately scaled values of any variable to 0.3%.

• Available as either 4 digit or 2×4 digit versions
• 3,000msw rated rugged design
• Powered from ROV supply, 10 – 30VDC, 3W
• Ultra-low power with selectable dormant state
• Provides analogue strain feedback accurate to 0.3% and count feedback to ‘dumb’ tools or Subsea Modules scaled as per user needs
